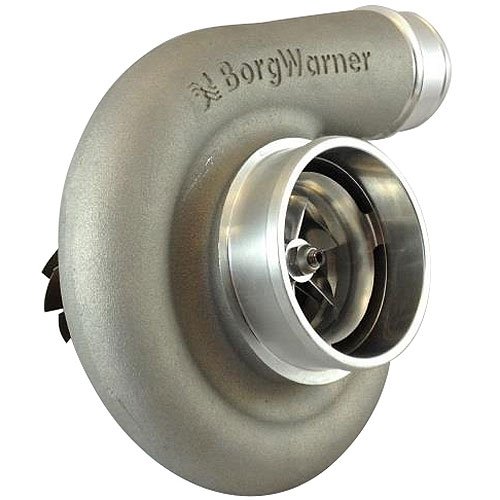

BorgWarner SuperCore Assembly SX-E S300SX-E 62mm Inducer 8776
- 60-degree thrust bearing
- Integrated speed sensor port
- Forged milled compressor wheel
- Flexible compressor cover outlet options
- Pre-machined boost port
- Optimized compressor stage aerodynamics
Not included with turbo assemblies: Speed sensor, Turbine outlet V-Band, Drain port fitting
|
Super-Core Part #
|
Comp. Wheel O.D. (in)
|
Comp. Wheel O.D. (mm)
|
Comp Wheel Inducer Dia. (in) |
Comp Wheel Inducer Dia. (mm) |
Turbine Wheel O.D. (in) |
Turbine Wheel O.D. (mm)
|
Turbine Wheel Exducer (in) |
Turbine Wheel Exducer (mm) |
Service Kit (360° thrust bearing) |
| 13009097056 |
3.29 |
83.47 |
2.42 |
61.44 |
3.00 |
76.20 |
2.66 |
67.56 |
13007110005 |
| 13009097053 |
3.29 |
83.47 |
2.42 |
61.44 |
3.14 |
79.76 |
2.89 |
73.37 |
13007110005 |
| 13009097006 |
3.44 |
87.37 |
2.48 |
62.99 |
3.00 |
76.20 |
2.66 |
67.56 |
13007110005 |
| 13009097047 |
3.44 |
87.37 |
2.48 |
62.99 |
3.14 |
79.76 |
2.89 |
73.37 |
13007110005 |
| 13009097008 |
3.44 |
87.37 |
2.54 |
64.47 |
3.00 |
76.20 |
2.66 |
67.56 |
13007110005 |
| 13009097055 |
3.44 |
87.37 |
2.54 |
64.47 |
3.14 |
79.76 |
2.89 |
73.37 |
13007110005 |
| 13009097049 |
3.60 |
91.44 |
2.60 |
66.11 |
3.14 |
79.76 |
2.89 |
73.37 |
13007110005 |
| 13009097051 |
3.60 |
91.44 |
2.72 |
69.00 |
3.14 |
79.76 |
2.89 |
73.37 |
13007110005 |
| 13009095091 |
3.58 |
91.00 |
2.83 |
72.00 |
3.14 |
79.76 |
2.89 |
73.37 |
|
Turbine Housings (T4):
| Part # |
A/R |
Inlet Configuration |
Notes |
| 177211 |
0.88 |
Volute, Open Flow |
80mm Turbine Wheel |
| 177208 |
0.91 |
Volute, Twin Flow |
80mm Turbine Wheel
|
| 179905 |
1.00 |
Volute, Twin Flow |
80mm Turbine Wheel
|
| 177210 |
0.88 |
Volute, Open Flow |
76mm Turbine Wheel |
| 177207 |
0.91 |
Volute, Twin Flow |
76mm Turbine Wheel |
| 177209 |
1.00 |
Volute, Twin Flow |
76mm Turbine Wheel |
